Recursive CTEs in SQL
What is a Recursive CTE?
A recursive CTE references itself during the execution. It returns a subset of the result, then it recursively references itself and terminates when it has returned all the results.
Basically a query you want to run again and again adding data until you tell it to stop.
Why would you need a recursive query??
Example Usage:
Recursive CTEs are a great tool to use in specific situations.
Rolling Totals
Hierarchical data
Iterative calculations
Sequence generation
Finding ancestors/descendants

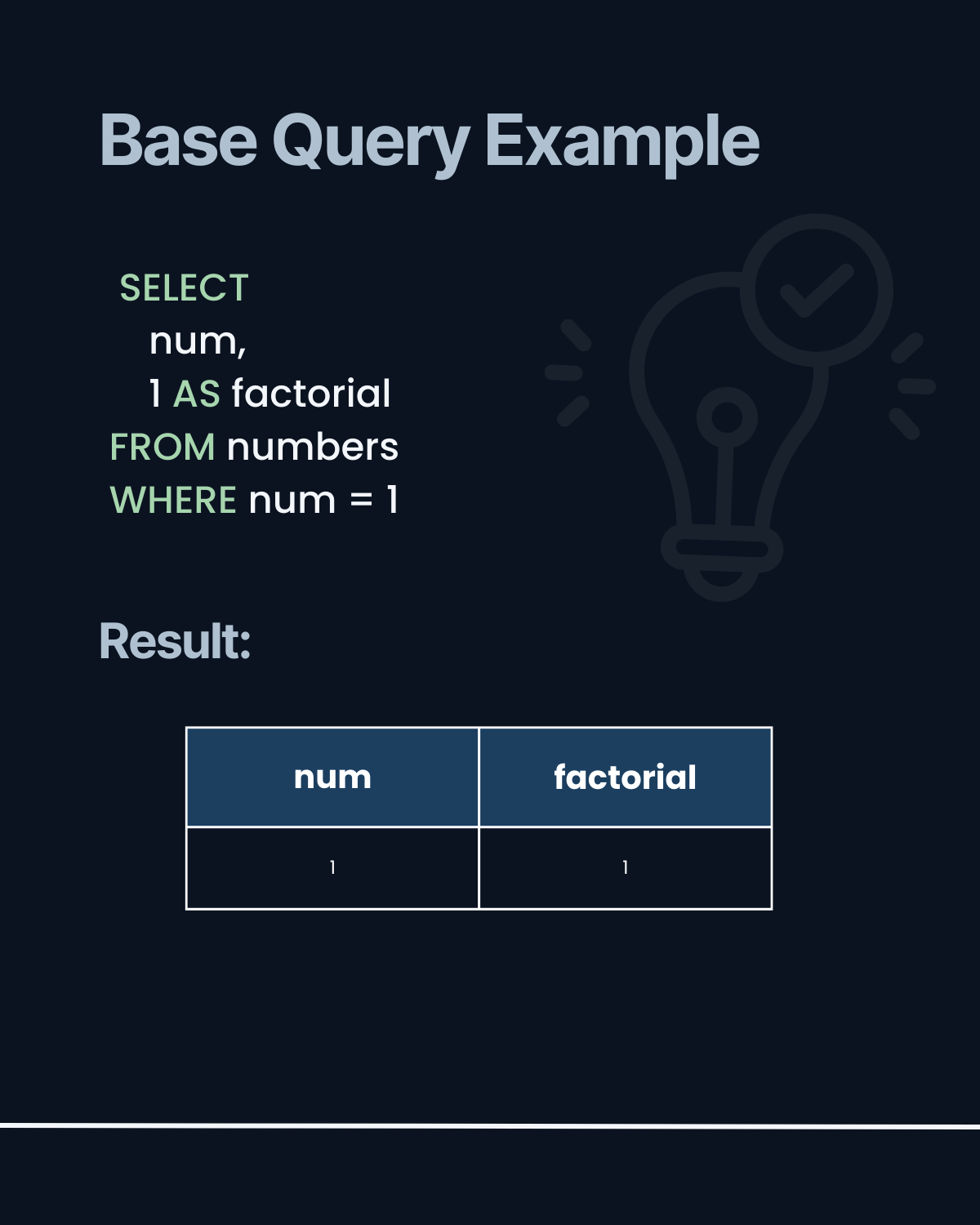

What is an Anchor Member? a.k.a Base Query
A recursive CTE starts it’s execution with the anchor member(base query) which is a non recursive query.
It creates a table with the initial rows of data that serves as the starting point for the recursion.

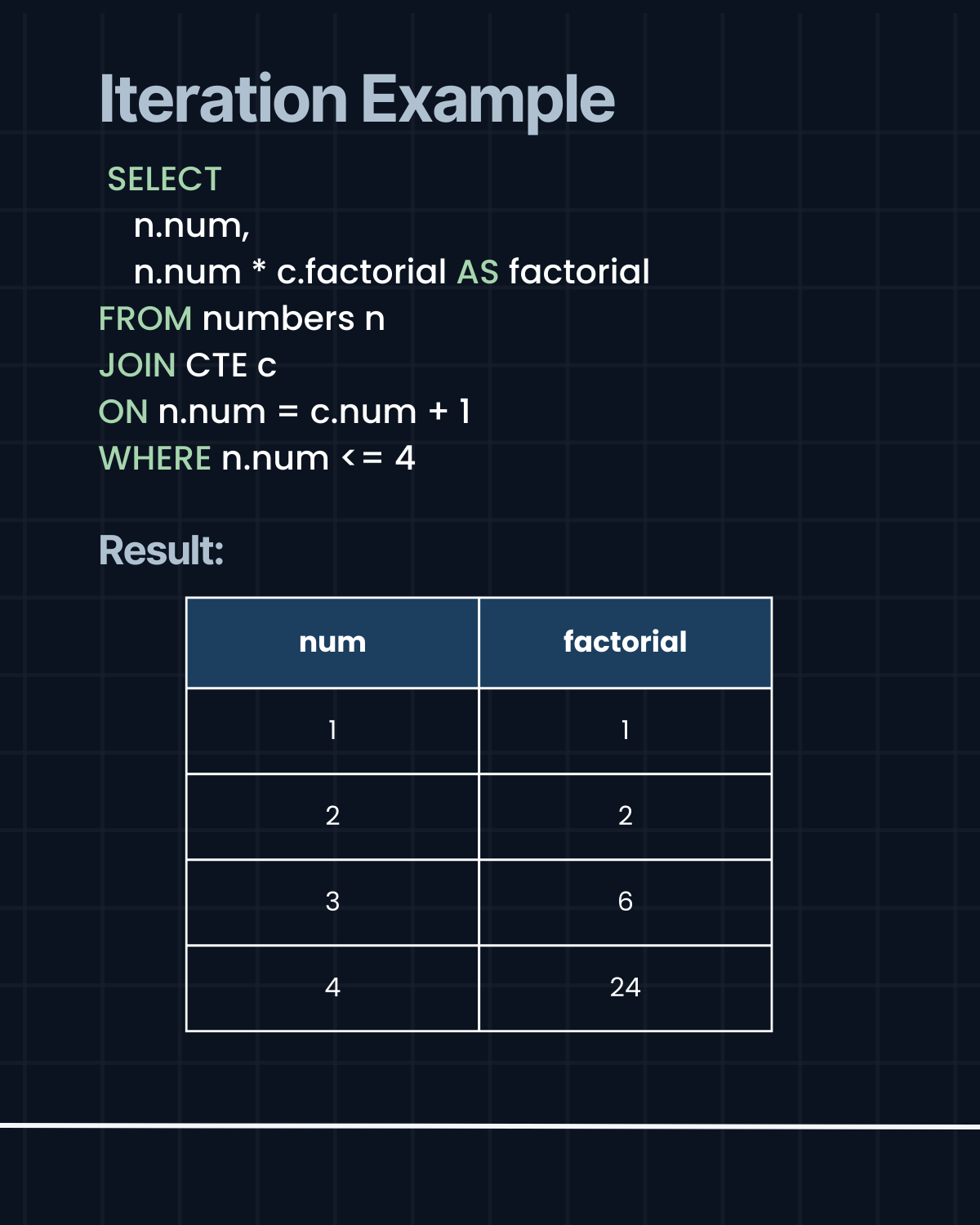

What is the Recursive Member? a.k.a The Iterations
The recursive member mainly consists of the SELECT statement that references the CTE itself.
Each iteration uses the results that were obtained in the previous iteration (or builds upon the initial base Query).
This process is repeated until a termination condition is met.

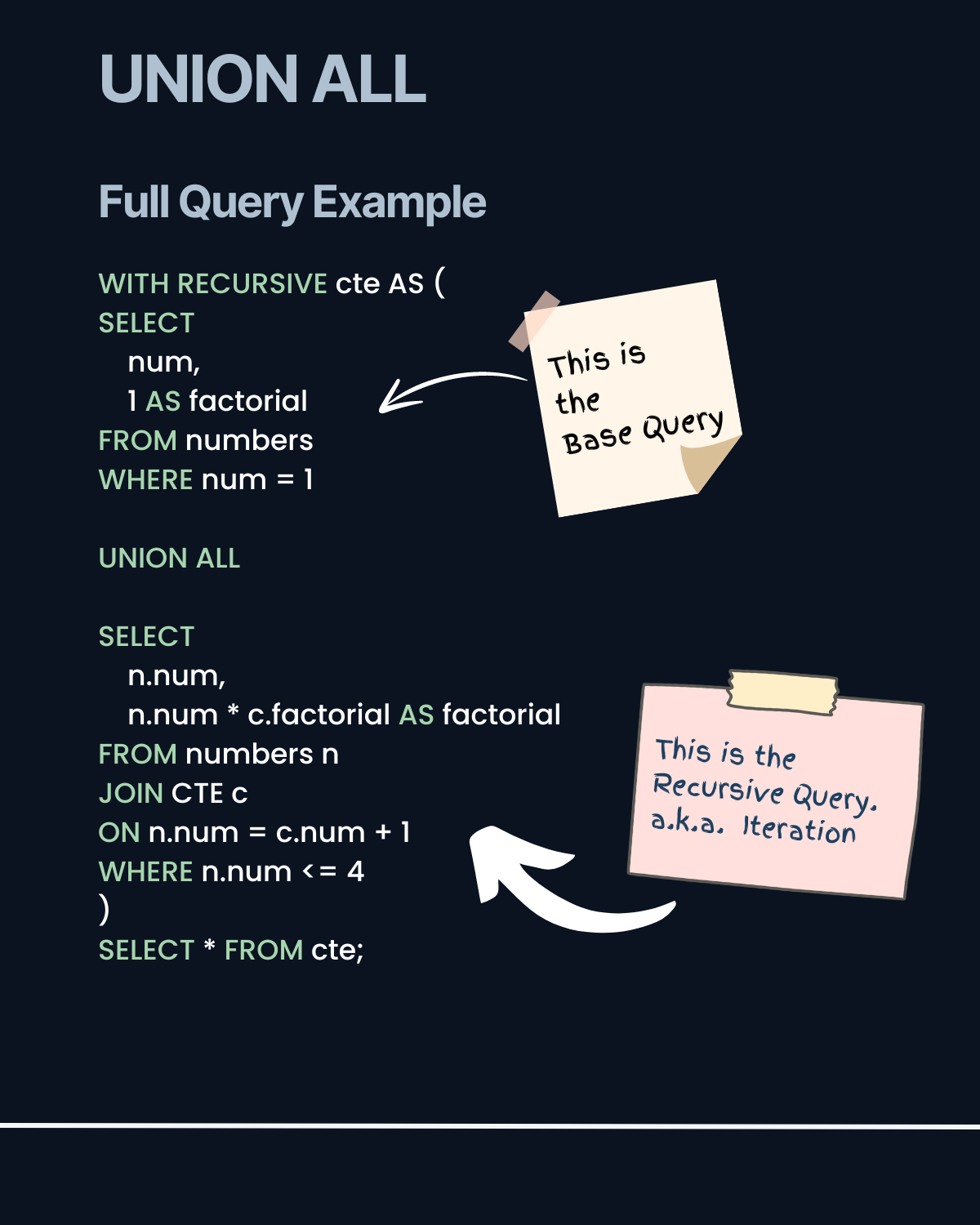

Example query Explained:
Our base query gives us a base table with num 1 and factorial 1. Our recursion then goes through, adds 1 to num making it 2. And then multiplies the new num by the last factorial. 2 * 1, also giving us 2.
It continues looping back and repeating until it is terminated by the
WHERE clause (WHERE n.num <= 4)Resulting in a final table of 1 - 4 with their factorials.
Union ALL
The UNION ALL operator combines the base query table with the iteration results
[EDIT ME]“Subscribe” buttons (found in your editor under “Buttons'“) will make it easy for new readers to subscribe to your newsletter with one click.[EDIT ME]
Termination!!!
Make sure you build a terminator statement into your recursive query or else the query can get stuck in an infinite loop.
Most of the modern SQL engines have a built in safety net to prevent infinite loops. But its best to get into practice of including a terminator statement.
(i.e. WHERE n.num <= 4)
NOTE: PostgreSQL Does not have a default recursion limit.
—
Final Note :
MySQL, PostgreSQL, and SQLite require you to explicitly state RECURSIVE in the cte WITH declaration clause.
SQL server does not.
MySQL, PostgreSQL, and SQLite:
WITH RECURSIVE query_example ASMicrosoft SQL Server:
WITH query_example ASThank you for reading!
